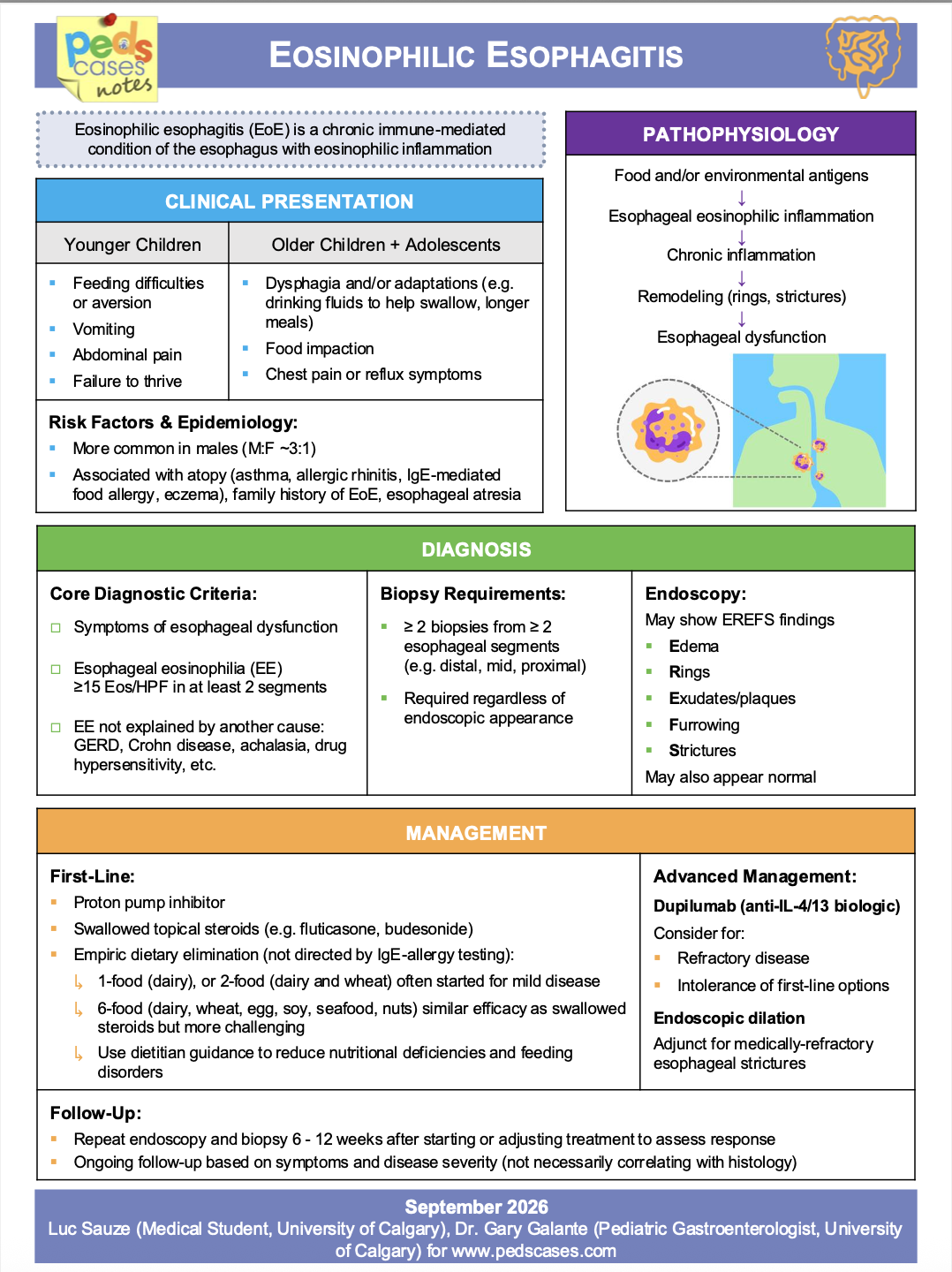

This PedsCases Note provides a one-page infographic on Eosinophilic Esophagitis. It summarizes the clinical presentation, pathophysiology, diagnosis, and management of Eosinophilic Esophagitis. It was created by Luc Sauze (Medical Student, University of Calgary), Dr. Gary Galante (Pediatric Gastroenterologist, University of Calgary).
Click on the image below for the full-screen PDF handout.
There are no conflicts of interest to disclose by the authors.
References:
1. Avinashi V, Gupta M, Payne BA, Amhaz H, Temirova AT, Afif W, et al.
Recommendations for the diagnosis and management of eosinophilic esophagitis in
adults and children in Canada: a Delphi consensus project. J Can Assoc
Gastroenterol. 2025;8(6):207-227. doi:10.1093/jcag/gwaf022.
2. Philpott H, Dellon ES. Eosinophilic esophagitis. In: StatPearls [Internet]. Treasure Island
(FL): StatPearls Publishing; 2025. Available from:
https://www.ncbi.nlm.nih.gov/books/NBK459297/
3. De Matteis A, Pagliaro G, Corleto VD, Pacchiarotti C, Di Giulio E, Villa MP, et al.
Eosinophilic esophagitis in children: clinical findings and diagnostic approach. Curr
Pediatr Rev. 2020;16(3):206-214. doi:10.2174/1573396315666191004110549.
Pathophysiology figure created by Luc Sauze using free graphic elements from Canva
